All processes in the car series production are subject to quality-related controls on the function of assemblies and actuators. In addition to the lighting, air conditioning, existing safety and comfort systems, the functions of control units are also checked, and firmware updates are loaded at the same time. The fbg-Li2-12 is designed for the supply of the necessary high energy demand.

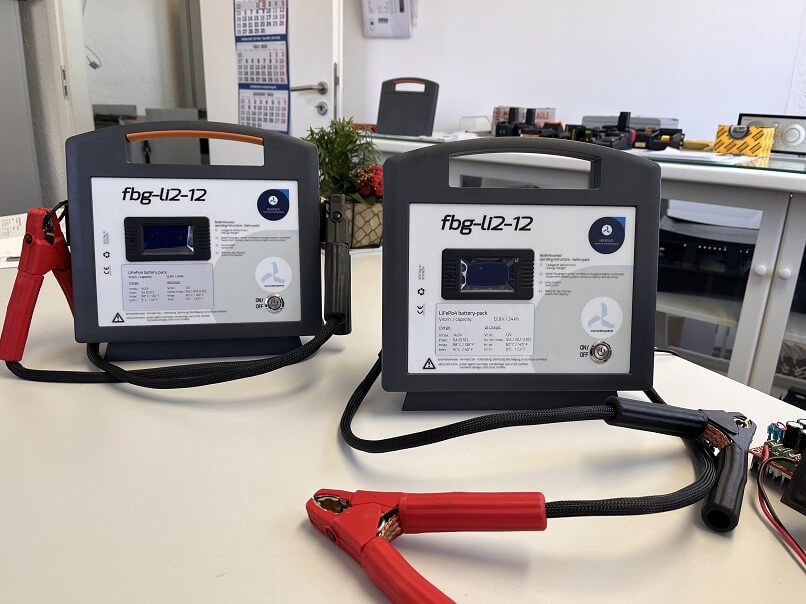

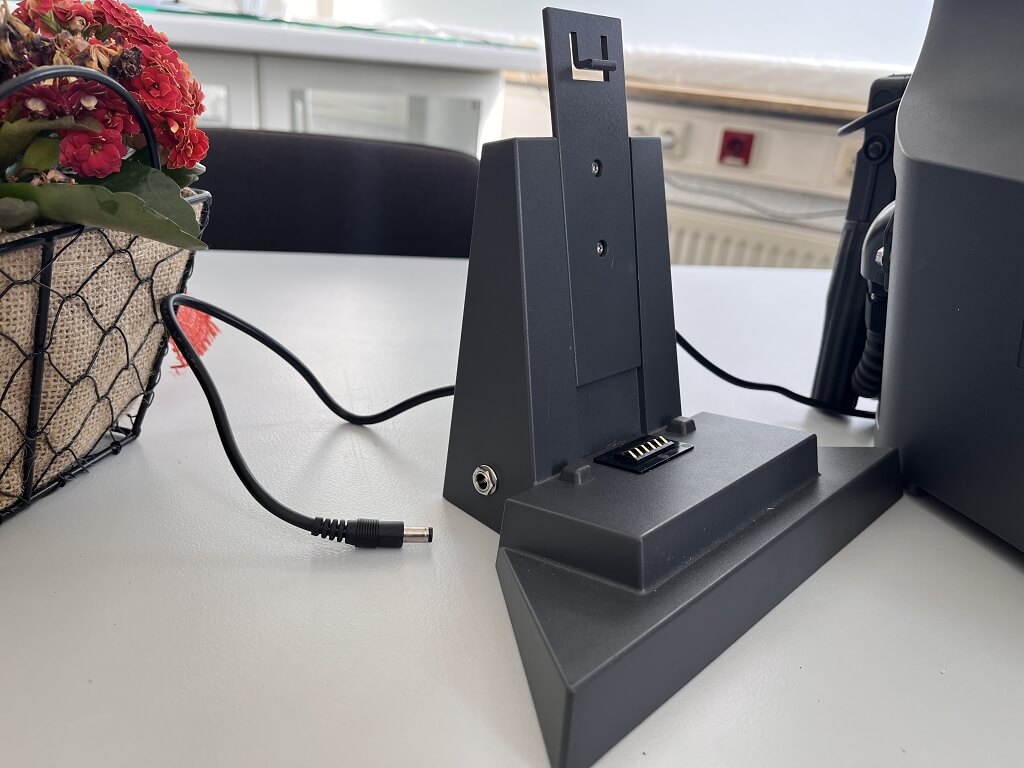

The Nordisch fbg-Li2-12 offers you the appropriate emergency strategy for powerless areas within the line. An encapsulated high-performance battery in an industrial-grade housing with complete self-monitoring! Rechargeable in a perfectly matched charging console, which can be mounted standing or hanging.

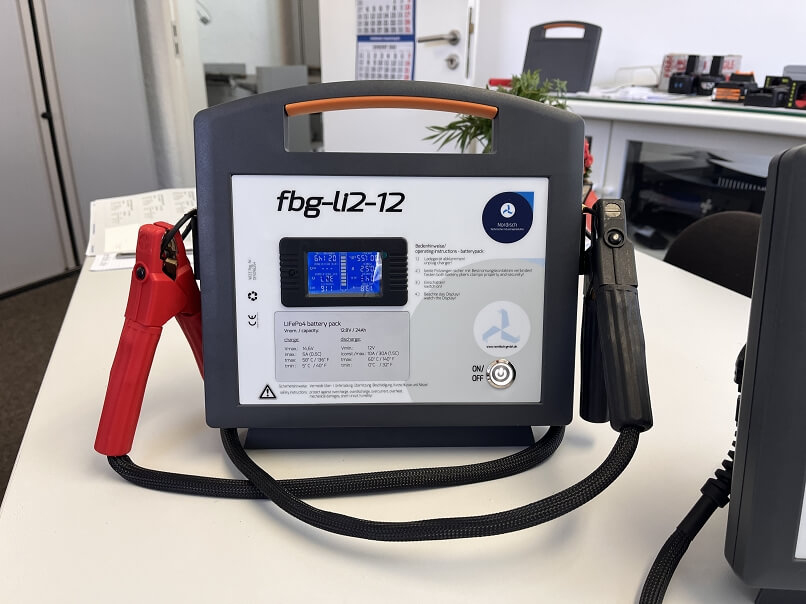

In the plastic housing with handle, charging clamps (fully insulated with brass casting), 12V / 23.4Ah, the lightweight weighs only about 3.5 kg (plus 0.5m supply line & pole clamps). During powering with 10A continuous operation and up to 30A peak current, it provides almost 24Ah without losing control. With >2000 charging cycles at >80% discharge, it has a significantly longer lifespan than conventional Li-Ion batteries. In industrial applications, several years of service life can be expected.
The user has full control via the display in the line of sight at the push of a button: fill level, total usage time, current power output/input, and remaining capacity are always in view. (See figure under Downloads)

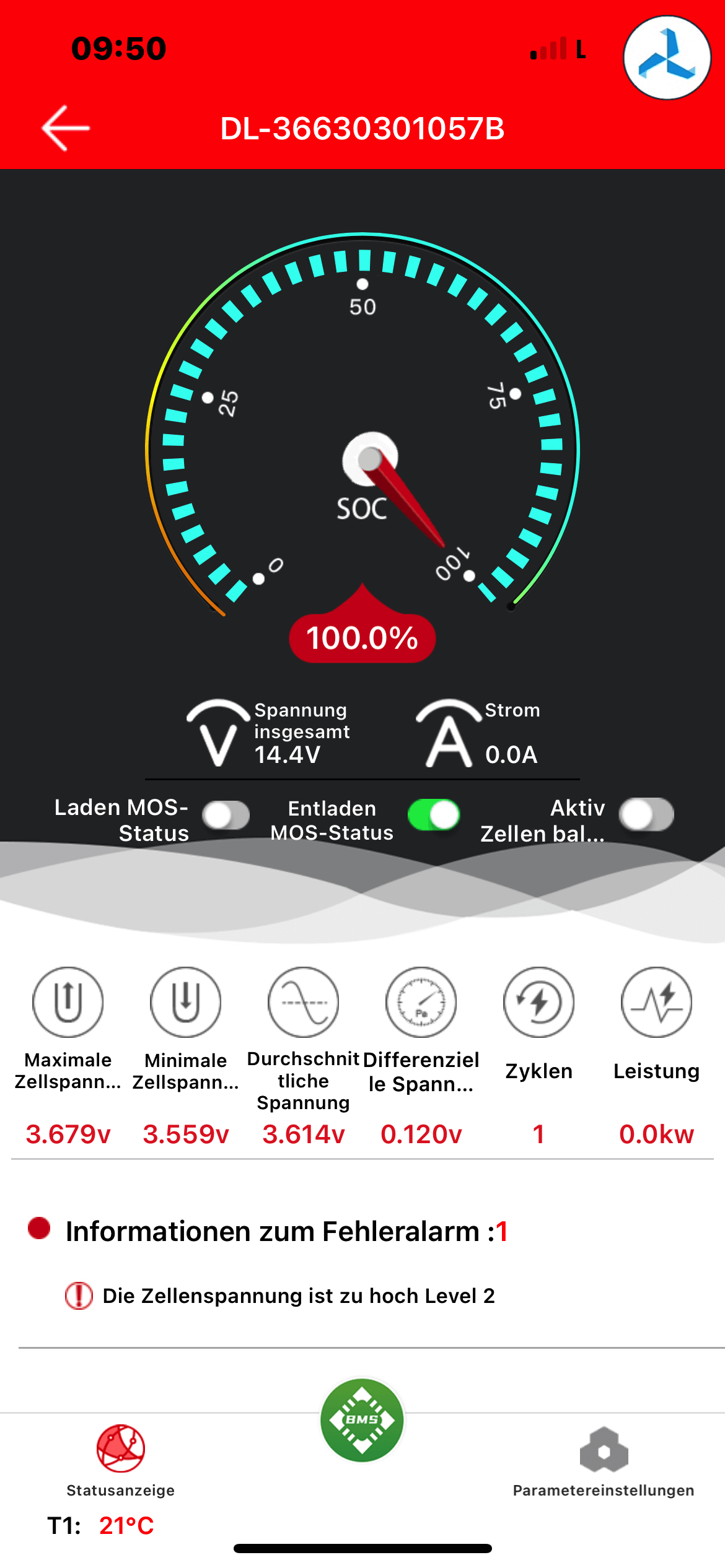

Optionally, the system function can be assessed and configured as needed via an app (iOS/Android) (see image page 1).
Overall, the Nordisch FBG-Li2 is a very useful tool for modern car production. - It increases efficiency, mobility, shortens working time, and is indispensable, especially as an emergency strategy or in extended production areas without power supply!
The user has full control via the display in the line of sight at the push of a button: fill level, total usage time, current power output/input, and remaining capacity are always in view!

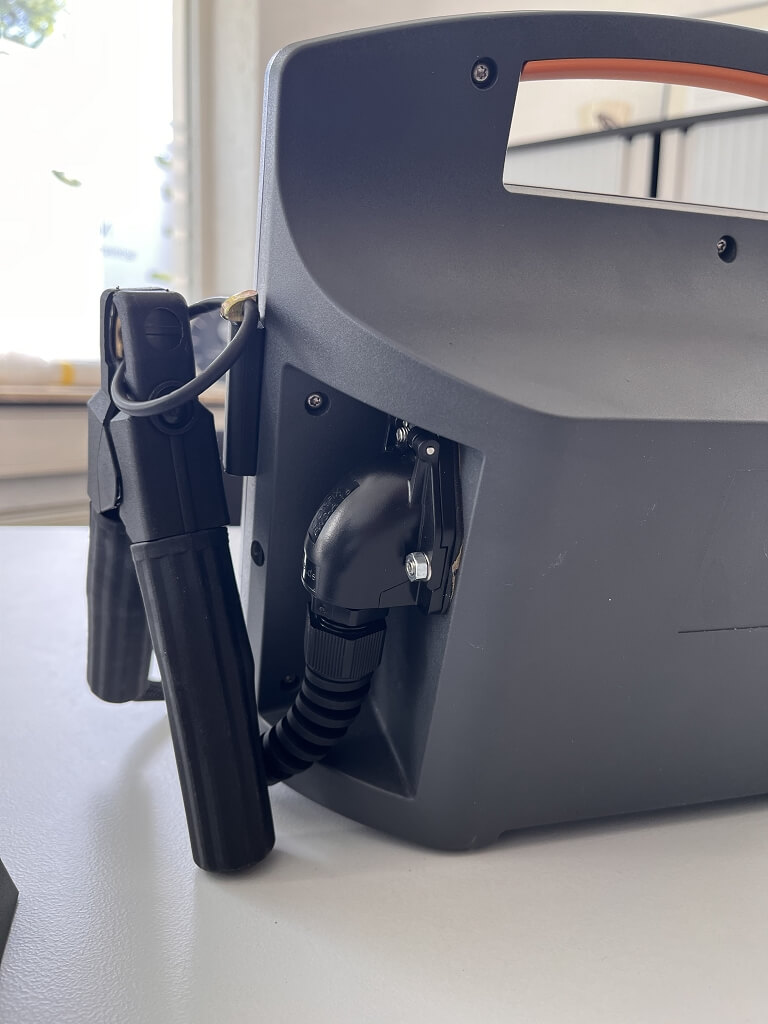

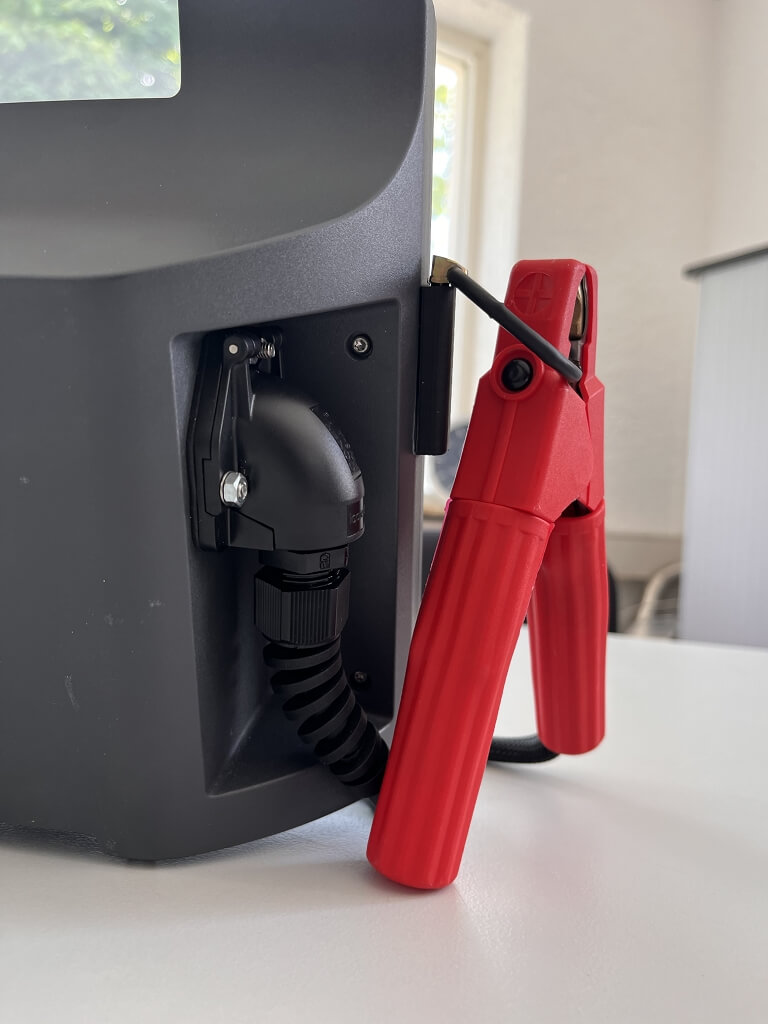

Whether 10A for control unit updates and system tests or high currents up to 40A is your choice! The right cable length from 0.5m to 2m, with the appropriate special clamp for vehicle-specific battery contacts, can be customized by Nordisch according to the customer model.

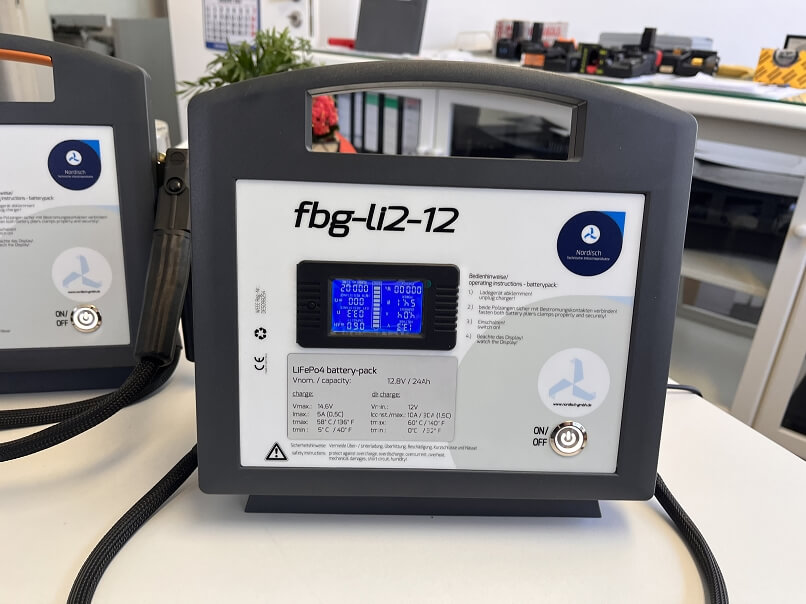

The encapsulated high-performance battery in an industrial-grade housing as a portable version with only 3.5kg (!) is an absolute lightweight! The display view is user-oriented.
